Action Symbols

Overview

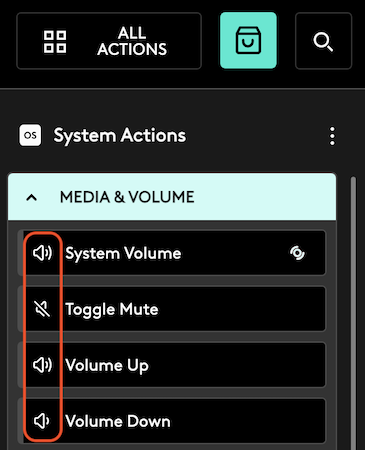

Plugin action symbols are small icons that represent the actions. The symbols are located next to the action names in the action picker of the configuration UI:

Plugin action symbols

How to add symbols

  1. Prepare your symbol files: Create vector images in SVG format for your plugin actions.

  2. Create one symbol per action: Ensure there is 1 symbol for each action that your plugin implements. Missing symbols will be replaced with a generic one.

  3. Place symbols in the correct directory: Locate the symbols in the actionsymbols directory of your plugin package.

  4. Add parameter-specific symbols (optional): If your action has a fixed (compile time) number of parameters, you can create 1 symbol per parameter for more specific representation.

  5. Restart the service: After adding action symbols, restart Logi Plugin Service to apply the changes.

Image requirements

File format

  • Symbols must be in SVG format.
  • Symbols must have a transparent background.
  • Symbols must have a single color (black) strokes and fills.

File naming

  • Symbol files must have .svg file extension.
  • Symbol files must have full name of the action they represent:
    • Loupedeck.DemoPlugin.ToggleMuteCommand.svg if action is defined in ToggleMuteCommand class located in Loupedeck.DemoPlugin namespace.
  • If action has a fixed (compile time) number of parameters:
    • Symbols can be specified for each parameter.
    • If symbol is not found for this parameter, then symbol for the action itself is used.
    • File name consists of full name of the action (as above), 3 underscores as a separator and parameter name:
      • Loupedeck.DemoPlugin.ButtonSwitchesCommand___1.svg for the parameter 1 of action implemented in ButtonSwitchesCommand class located in Loupedeck.DemoPlugin namespace.
      • If this file is not found, then Loupedeck.DemoPlugin.ButtonSwitchesCommand.svg file can be used.
