Icon Editor

Overview

Icon Editor is a part of the Options+ and Loupedeck user interfaces that lets users customize action icons. It provides navigation controls and tools, allowing you to select an icon and modify its appearance or associated text.

Developer mode

For additional capability, developers can export Icon Templates via Icon Editor in developer mode:

  1. Enable developer mode:

    • Stop Logi Plugin Service.

    • Open the LoupedeckSettings.ini configuration file located in the Logi Plugin Service directory:

      • Path (Windows): C:\Users\<user_name>\AppData\Local\Logi\LogiPluginService
      • Path (macOS): ~/Library/Application Support/Logi/LogiPluginService

    • Add the following line:

      Loupedeck/DeveloperMode=True

    • Start Logi Plugin Service.

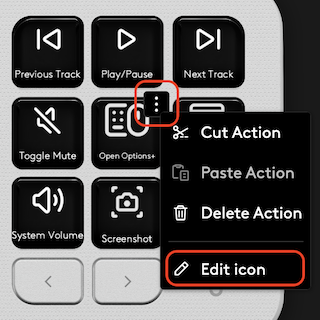

  2. Open Icon Editor.

    Open Icon Editor

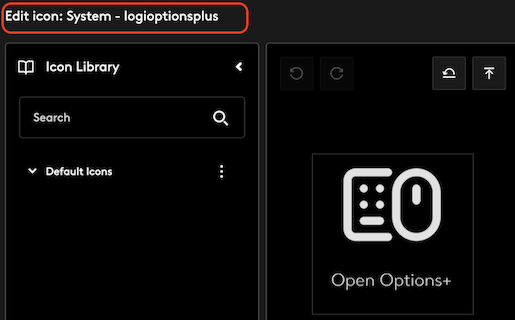

  3. Switch to developer mode by clicking on the "Edit Icon: ..." title in the Icon Editor interface.

    Switch to developer mode by clicking on the "Edit Icon: ..." title

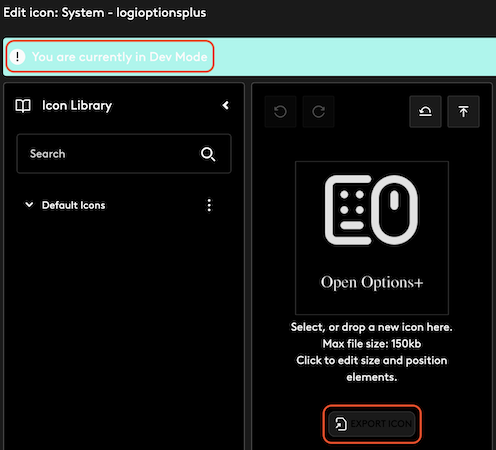

  4. Perform needed updates and use "Export Icon" button to export the Icon Template.

    Use "Export Icon" button to export the Icon Template
