Best Practices

Example Use Cases​

There are two primary types of use cases when designing haptic experiences: Feedback and Notifications.

Feedback​

Haptics provide immediate tactile confirmation of user actions, helping users to build muscle memory, speed up reaction times, and feel more precise.

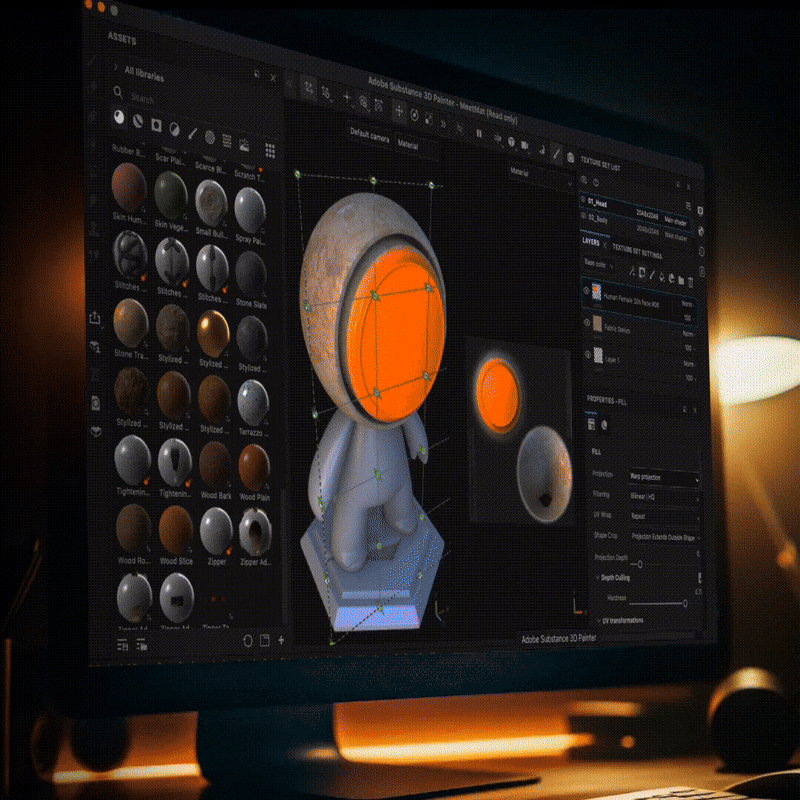

Feedback haptics use case

Trigger haptic feedback when the cursor or an object spatially snaps with:

  • Alignment guides
  • Important vertices & handles
  • Artboard edges
  • Timeline markers

Trigger haptic feedback to highlight when there is a change in the click input context:

  • More options available
  • Change in the type of selection
  • Different manipulation for the selected element

Notifications​

Turn your sound off and stay longer in your flow state without missing gentle reminders being directed to the haptic button.

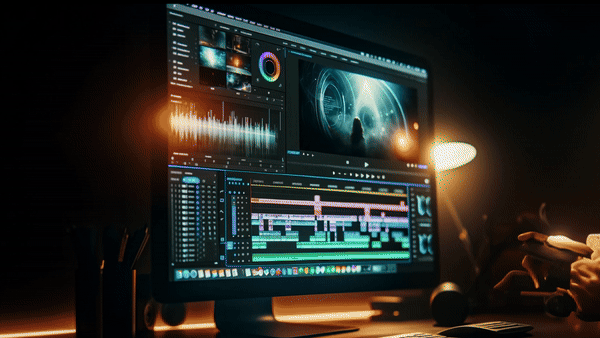

Notification haptics use case

Trigger haptic notification to know when:

  • A long process was completed
  • An event is happening in the background
  • Code is compiled

Design Guidelines​

Waveform Selection​

  • Use subtle waveforms for frequent events
  • Reserve intense waveforms for important notifications
  • Consider the context of your application/plugin

Event Timing​

  • Avoid triggering haptic events too frequently
  • Ensure haptic feedback aligns with visual feedback and plugin functionality

Device Support​

  • Always provide a DEFAULT waveform
  • Test on supported devices when possible

Examples​

Precision Enhancers​

Cursor hovering over an element in the Actions Ring interface

Event: Cursor hovers on Actions Ring Element
Haptic feedback: The waveform Subtle Collision is played

Playhead snapping to align with the beginning of a video clip

Event: Playhead snaps with beginning of clip
Haptic feedback: The waveform Subtle Collision is played

Layer content snapping into alignment with a smart guide

Event: Layer content snap with smart guide
Haptic feedback: The waveform Subtle Collision is played

Handle colliding with the end of a slider control

Event: Handle collides with end of slider
Haptic feedback: The waveform Subtle Collision is played

Cropped area reaching maximum height and width limits

Event: Cropped area reached max height/width
Haptic feedback: The waveform Subtle Collision is played

Progress Indicators​

Adobe Premiere Pro export progress bar showing completion at 100%

Event: Adobe Premiere Pro export progress bar is full
Haptic feedback: The waveform Subtle Collision is played

AI mask successfully created and applied to an image

Event: AI Mask was created
Haptic feedback: The waveform Damp State Change is played

Incoming Events​

Incoming call notification showing someone is calling

Event: Someone is calling you
Haptic feedback: The waveform Ringing is played

Notification showing someone has entered the waiting room

Event: Someone entered the waiting room
Haptic feedback: The waveform Knock is played

Message indicating unable to join the meeting

Event: Unable to join this meeting
Haptic feedback: The waveform Mad is played
